code Samsung Galaxy S3 i9300

Hey all,


Im done uploading the firmware or stock rom for i9300 or the Samsung Galaxy S3. This is a La Fluer edition file. You will have a La Fluer bootanimation. I think the firmware version is 4.3 (Jellybean)

You need to download several files including the firmware

Odin --> Odin 3.07
Firmware -- > Samsung Galaxy S3 i9300 Part1
Firmware -- > Samsung Galaxy S3 i9300 Part2
Firmware -- > Samsung Galaxy S3 i9300 Part3
Firmware -- > Samsung Galaxy S3 i9300 Part4
Firmware -- > Samsung Galaxy S3 i9300 Part5
Firmware -- > Samsung Galaxy S3 i9300 Part6
Firmware -- > Samsung Galaxy S3 i9300 Part7
Firmware -- > Samsung Galaxy S3 i9300 Part8
Firmware -- > Samsung Galaxy S3 i9300 Part9
Samsung Driver -- > SamsungDriver

"Extract these files in your desired folder"
"Use 7zip or FileJoiner to extract the files"


Installing the driver

1. Install driver first just keep on hitting next.
2. After installing the driver Press and Hold Volume Down + Home Key + Power Button, a selection will appear if you would like to go in Download Mode, Press Volume Up to proceed in Download Mode.
3. Connect your phone in the PC via USB Cable
4. Wait for it to finish installing the driver.
"Note: Sometimes it is better to reboot your PC. After installing the driver."

BEFORE PROCEEDING IN FLASHING MAKE SURE  THAT THE BATTERY IS FULLY CHARGED OR 50% CHARGED.


Flashing your Phone
1. Open Odin 3.07
2. Load the following file. PDA, Phone, CSC. No need to overwrite Boot. And its okey to not include the pit file (Flashing .pit file is dangerous) If you are only fixing bootloop. If you are fixing damage baseband include the PIT file and bootloader, the .pit file is for 16GB variant, that is what i read in forums. So dont flash if you have 32GB variant.
PIT --> mx.pit
Bootloader --> BOOTLOADER_I9300XXEMG4_1314436_REV00_user_low_ship.tar
PDA --> CODE_I9300XXEMG4_1314436_REV00_user_low_ship.tar
Phone --> MODEM_I9300XXEMG4_REV02_REV04_CL1360150.tar
CSC --> CSC_QXE_I9300QXEEMH1_CL1359448_REV00_user_low_ship.tar

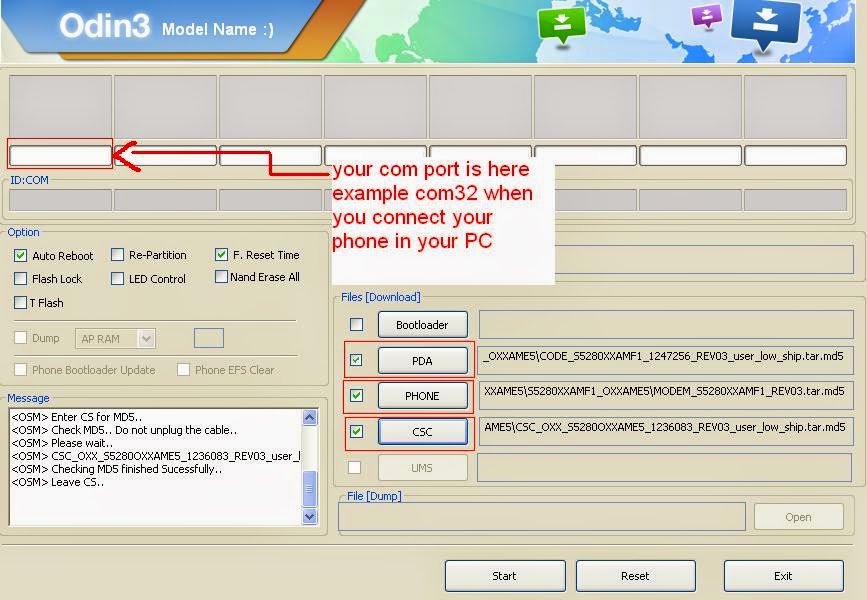

3. Do not check repartition in option key, copy only what is shown in the picture above.
4. When you are ready to flash your phone, Press and Hold Volume Down + Home Key + Power Button, a selection will appear if you would like to go in Download Mode, Press Volume Up to proceed in Download Mode.
5. Connect your phone in the PC via USB Cable, wait for a value in the ID:COM to appear. It will turn yellow with number example: COM32, if it nothing appear close Odin an open it again and load the file again.
6. Press START to proceed flashing your phone. Wait until it is done, the phone will reboot after flashing.

I hope this tutorial help you. Drop a comment if there is something is not clear to you. Cheers! ^_^
